Boards For Playful Exploration Of Digital Protocols

Teaching people today effectively is not limited to transmitting content from one head to an additional — it’s also about conveying the principles that obtained us there. [Mara Bos] displays us a toolkit (Twitter,
nitter connection) that you can arm your students with, developing a little playground where, offered a established of constraints, they can invent and determine communication protocols out on their individual.

This software is aimed to train electronic communication protocols from a various way. We all know that UART, I2C, SPI and such have distinctive use situations, but why? Why are baud premiums critical? When are clock or chip select lines valuable? What’s the deal with the start off bit? We kinda sorta figure out the responses to these on our individual by mental reverse-engineering, but these issues can be taught far better, and [Mara] exhibits us how.

Carefully guided by your observations and insights, your students will go by defining new and old communication expectations from the ground up, rediscovering ideas like accept bits, bus contention, or even DDR. And, as you point out that the tricks they just found out have actual-world counterparts, you will see the gentle bulb go on in their head — recognizing that they, too, could be aspect of the future era of engineers that structure the systems of tomorrow.

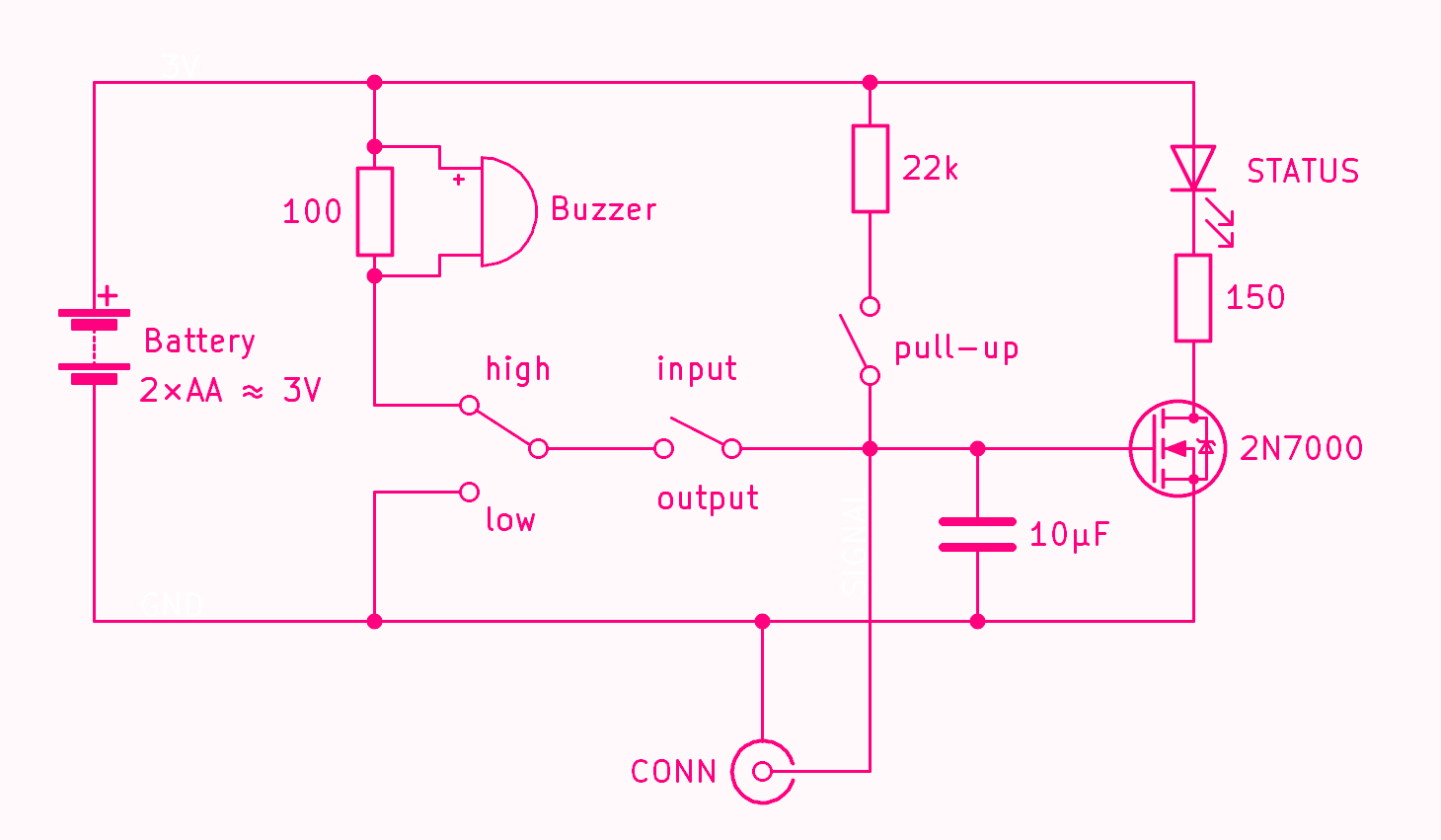

The toolkit she demonstrates consists of boards each individual geared up with three toggle switches, some via-gap resistors and an LED, a buzzer signaling about short-circuits, and AAA battery holders to make the boards self-contained. These boards could quickly be items of a soldering study course them selves! Plugging these boards together with ever-considerable RCA cables, pupils work together in little teams, using switches on one set of boards to transmit knowledge to the other established. She designed a online video demonstrating how these boards perform, which is embedded below.

You do not constantly require to stand in front of a whiteboard while training some thing — usually, a couple customized boards will do the trick, and frequently better. We have observed academic PCBs for logic gates in advance of, and when it will come to kits you can hand out for experiments, a full large amount of ideas like snap-together magnetic circuit blocks. If you surprise why all these different applications are essential, remember that we have talked about how education and learning programs can fall short a hacker’s brain.

We thank [Chaos] for sharing this with us!

⚡️💡Two several years back, I wanted to demonstrate some folks digital protocols like I²C. I desired to skip the dull things make it a palms-on practical experience. So I manufactured these little boards that they could use as I/O pins and invent their very own protocols to discuss to each other throughout the table. 1/3 pic.twitter.com/si4W3eUqVu

— Mara Bos (@m_ou_se) April 4, 2022
