Cool Mechanism Day: Two-Way To One-Way

2 min read

[ad_1]

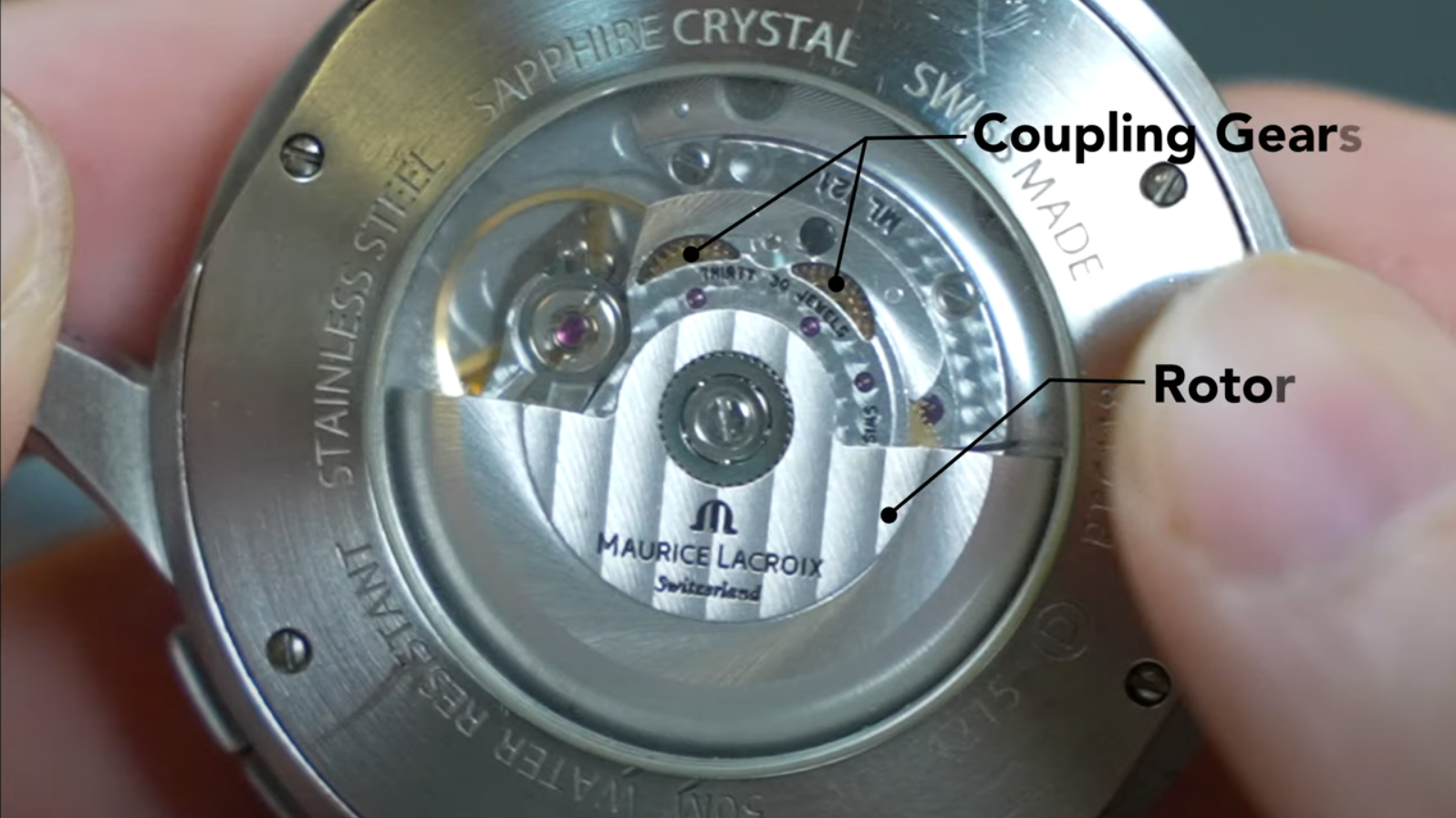

The internal mechanisms that are utilised in timepieces have often been fascinating to look at, and are typically will work of artwork in their individual right. You really don’t have to live in the Watch Valley in Switzerland to value this art kind. The mechanism highlighted listed here (from Mechanistic on YouTube) is a two-way to 1-way geared coupler (movie, embedded under) which can be found at the generate spring winding close of a common mechanical wristwatch.  It is frequently connected to a seriously eccentrically mounted mass which drives the enter gear in either course, relying upon the movement of the wearer. Just a minor standard motion is all that is desired to continue to keep the spring properly wound, so no forgetting to wind it in the morning hustle!

The plan is beautifully very simple A compact sized input equipment is driven by the mass, or winder, which drives a greater gear, the centre of which has a 1-way clutch, which transmits the torque onwards to the output equipment. The enter aspect of the clutch also drives an identical device, which picks up rotations in the opposite direct, and also drives the exact greater output gear. So simple, and watching this super-sized device in procedure genuinely provides you an appreciation of how elegant these kinds of mechanisms are. Could it be valuable in other programs? How about converting wind electric power to mechanically pump water in distant locations? Let us know your thoughts in the remarks down under!

If you want to participate in with this yourselves, the supply is downloadable from cults3d. Do test out some of the author’s other operate!

We do like these tremendous-sized system demonstrators all around here, like this 3D printed tourbillon, and here’s a little issue about the escapement system that permits all this timekeeping with any precision.

https://www.youtube.com/look at?v=0pOq9ngmYwc
